Products - Engineered for Every Roof.
Every Konaark mounting structure is manufactured in-house, built to IS code standards, and shipped with material and structural compliance documentation. Browse by application, material, or roof type — or request a custom quote for complex installations.
.jpg)
Residential MMS
KN-RES-FLT-01 | Flat Roof Ballasted Mount — Aluminum
Application: Residential flat RCC roof — no roof penetration required.
Material: 6063-T5 anodized aluminum with HDGI ballast trays.
Tilt Angle: 10°, 15°, or custom on request.
Module Compatibility: All standard 60-cell, 72-cell, and 120/144 half-cut framed modules.
Wind Load Rating: Designed per IS 875 Part 3 — up to 150 km/h standard; 200 km/h engineering available on request.
Maximum System Size: 25 kW on standard residential roof.
Documentation Included: Structural calculation report, material test certificate, installation guide.
.jpg)
.jpg)
KN-RES-SLP-02 | Sloped Roof Mount — Aluminum (Tile & Concrete)
Application: Residential sloped and pitched roofs — Mangalore tile, clay tile, flat concrete tile, metal sheet.
Material: 6063-T5 anodized aluminum rail with L-feet and EPDM waterproofing gaskets.
Fixing: Roof hook penetration with sealant kit included; hooks rated for specific tile type.
Rail System: 35mm or 40mm standard rail; splicing available for long spans.
Wind Load Rating: Designed per IS 875 — installation-specific; structural report included.
Documentation Included: Structural report, waterproofing specification, installation torque spec sheet.
KN-RES-ELV-03 | Elevated Flat-Roof Mount — HDGI (Terrace Farm)
Application: Elevated mounting for maximum generation yield; allows continued use of terrace for other purposes.
Material: IS 2062 hot-dip galvanized steel (IS 4759 compliant).
Elevation Height: 300mm to 1200mm above roof surface — custom heights available.
Best For: Bungalows and farmhouses where parapet wall shading is a concern.
Wind Load Rating: 200 km/h design — elevated structures face higher wind forces; full structural report mandatory.
Commercial & Industrial MMS
KN-COM-RCC-04 | Commercial Flat Roof (RCC Slab) — HDGI
Application: Large commercial and industrial RCC rooftop — shopping complexes, office buildings, schools.
Material: IS 2062 E250 HDGI structural steel — 85 micron zinc coating.
Module Row Spacing: Custom designed per shadow analysis — inter-row spacing calculation included.
Capacity Range: 20 kW to 500 kW on a single roof.
Foundation: Chemical anchor bolts into RCC slab — no welding to roof structure.
Wind Load Rating: 200 km/h design standard; coastal zone reinforcement available.
Documentation: Full structural calculation report, anchor design, foundation design per site.
KN-IND-MET-05 | Industrial Metal Shed Roof Mount — HDGI
Application: GI and colour-coated steel shed roofs — factories, warehouses, logistics hubs.
Material: HDGI clamps and standing seam hooks; no drilling required for standing seam profiles.
Compatibility: Trapezoidal profile, standing seam, corrugated GI sheet (drill-fix method).
Load Transfer: Loads transferred to purlin and rafter — not to cladding sheet.
Capacity Range: 50 kW to 2 MW+.
Special Feature: Roof load analysis included — critical for older factory structures.
Ground - Mount MMS

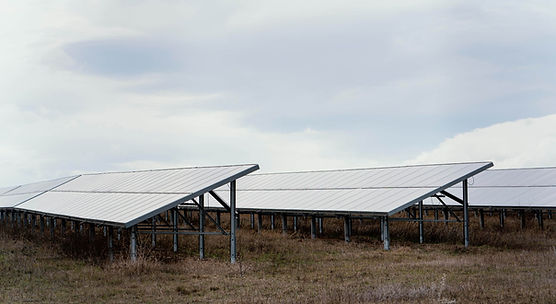

KN-GND-FIX-06 | Fixed Tilt Ground Mount — HDGI
Application: Open land, agricultural land (agrivoltaic), institutional campuses.
Material: IS 2062 HDGI structural steel; galvanized pile foundation or concrete footing.
Tilt Angle: Site-optimised fixed tilt — typically 10° to 20° for peninsular India.
Foundation Options: Driven pile (subject to soil conditions); concrete pad footing.
Capacity Range: 10 kW to 2 MW+.
Wind Load Rating: 200 km/h; seismic zone consideration for Zone III/IV sites.
Documentation: Full structural report; geotechnical input requirement for pile sizing.
.jpg)
Need Something Custom?
Complex roof geometries, unusual module types, very high wind zones, non-standard configurations -
Konaark's engineering team accepts custom projects with a minimum scope of 10 kW. Share your roof drawings, site location, and module specifications. We perform structural analysis and provide a design and quote within 7 business days. All custom structures ship with a full structural calculation report.
